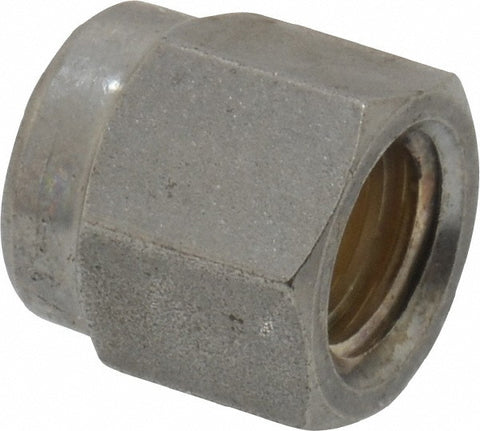

Compression Tube Nut: 1/8" Tube OD, FNPT
$6.03
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 85650893
Brand: Ham-Let
Model #: 3500160
Product Specifications
| Fitting Type | Nut |
| Material | Stainless Steel |
| End Connections | FNPT |
| Thread Standard | FPT |
| Tube Outside Diameter | 1/8 |
| Maximum Working Pressure (PSI - 3 Decimals) | 6500 |
| Overall Length (Decimal Inch) | 0.4700 |
| Overall Length (mm) | 11.93 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-202-1 |
| Minimum Temperature (C - 2 Decimals) | -29 |
| Maximum Temperature (C) | 37 |
| Minimum Temperature (Deg F - 3 Decimals) | -20 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Israel |
