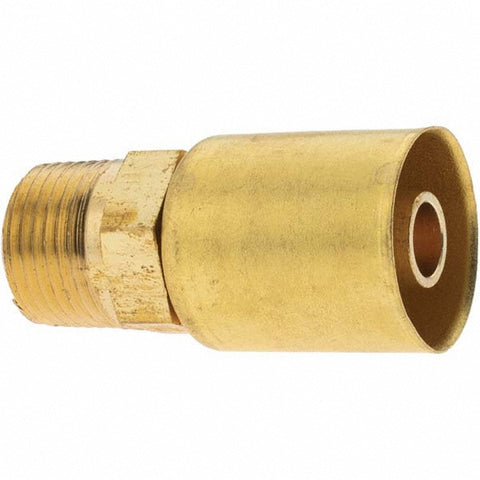

Hydraulic Hose MPT Fitting: 0.375" ID, 0.375" OD, 6 mm, 3/8-18
$19.28
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 52678893
Brand: Eaton
Model #: 33806P-106
Product Specifications
| Fitting Type | MPT Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.3750 |
| Hose Size | 6 |
| Material | Brass |
| Thread Size (Inch) | 3/8-18 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 8000.00 |
| Maximum Working Pressure (bar) | 8000.00 |
| Overall Length (Decimal Inch) | 1.7200 |
| For Use With | EC038 Hose |
| Standards | SAE J844 Type B; J1131; DOT FMVSS 106; J2494-3 |
| Series | P |
| Shaft Type | PTF SAE |
| Hose Outside Diameter (Decimal Inch) | 0.3750 |
| UNSPSC Code | 40141734 |
