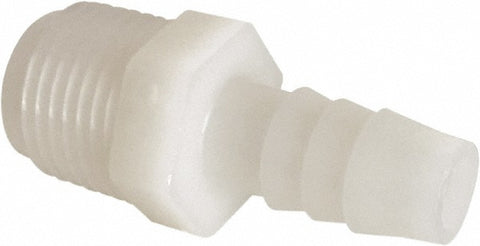

Barbed Tube Male Connector: Single Barb, 3/8" Barb, 1/4" NPT
$0.90
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 54718424
Brand: Parker
Model #: 325HB-6-4N
Product Specifications
| Fitting Type | Male Connector |
| Material | Nylon |
| Number Of Barbs | Single |
| Thread Size | 1/4 |
| Thread Standard | MNPT |
| Tube Inside Diameter | 3/8 in |
| Tube Outside Diameter | 0.4300 in |
| Barb Size | 3/8 |
| Shape | Straight |
| Color | White |
| Minimum Working Temperature (Deg C) | -40 |
| Minimum Working Temperature (Deg F) | -40 |
| Maximum Working Temperature (F) | 200 |
| Maximum Working Pressure (PSI - 3 Decimals) | 125 |
| Overall Length (Decimal Inch) | 1.6200 |
| Standards | NSF/ANSI 51; FDA Compliant |
| Male or Female | Male |
| Maximum Working Temprature (Deg C) | 93.30 |
| NPT Size (Inch) | 1/4 |
| UNSPSC Code | 27121700 |
| Product Service Code | 4720 |
| Country of Origin | UNITED STATES |
