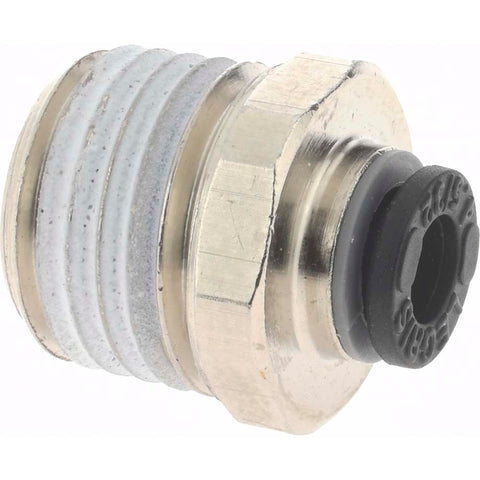

Push-to-Connect Tube x Male BSPT Fitting: Connector, BSPT, 5/32" OD
$12.29
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 48683809
Brand: Legris
Model #: 3175 04 13
Product Specifications
| Fitting Type | Connector |
| Connection Type | Tube x Male BSPT |
| Material | Nickel-Plated Brass |
| Tube Outside Diameter (mm) | 4.00 |
| Tube Outside Diameter | 5/32 |
| Thread Type | BSPT |
| Standards | 2011/65/EC; DI:97/23/EC (PED); UL94 V-0; RG:1907/2006 (REACH); RG:193; DI:2002/95/EC (RoHS); RG:21CFR (FDA); DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -4 |
| For Use With | Textile; Vacuum; Packaging; Robotics; Automotive; Pneumatics |
| Vacuum Rating | 1 bar |
| Maximum Work Temperature (Deg F - 3 Decimals) | 175 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | VARIOUS |
