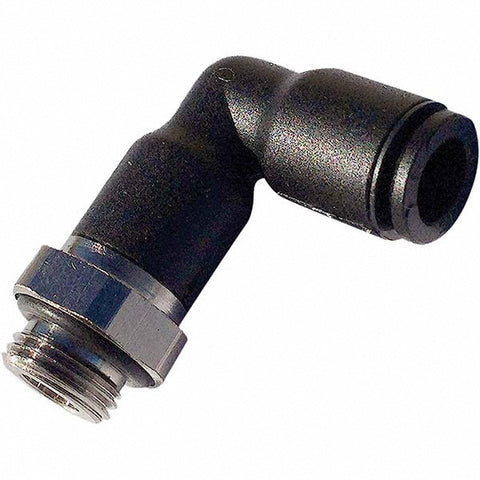

Push-to-Connect Push-to-Connect Fitting: 90 deg Extended Elbow, #10-32 Thread, UNF, 1/4" OD
$22.38
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 49839269
Brand: Legris
Model #: 3169 56 20
Product Specifications
| Fitting Type | 90 deg Extended Elbow |
| Connection Type | Push-to-Connect |
| Material | Glass-Reinforced Nylon; Nickel-Plated Brass |
| Thread Size | #10-32 |
| Tube Outside Diameter | 1/4 |
| Thread Type | UNF |
| Standards | 2011/65/EC; DI:97/23/EC (PED); UL94 V-0; RG:1907/2006 (REACH); RG:193; DI:2002/95/EC (RoHS); RG:21CFR (FDA); DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -4 |
| For Use With | Textile; Vacuum; Packaging; Robotics; Automotive; Pneumatics |
| Vacuum Rating | 1 bar |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 290 |
| Overall Length (Decimal Inch) | 1.3000 |
| UNSPSC Code | 27121700 |
| Country of Origin | VARIOUS |
