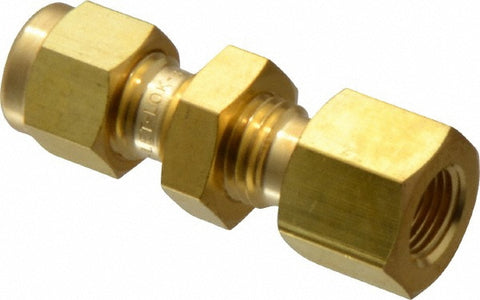

Compression Tube Bulkhead Female Connector: 1/4" Tube OD, Compression x FNPT
$16.63
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 89370472
Brand: Ham-Let
Model #: 3102570
Product Specifications
| Fitting Type | Bulkhead Female Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Standard | FPT |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 3200 |
| Overall Length (Decimal Inch) | 1.8500 |
| Overall Length (mm) | 46.99 |
| Standards | ASTM B68; ASTM B75 |
| Swagelok Part Number | B-400-71-2 |
| Minimum Temperature (C - 2 Decimals) | -20 |
| Maximum Temperature (C) | 37 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Israel |
