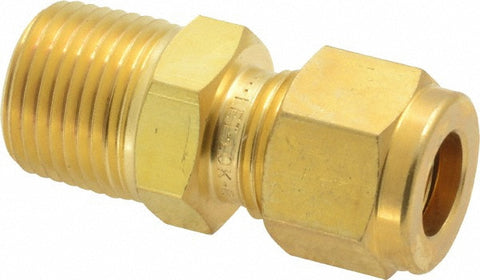

Compression Tube Connector: 3/8" Tube OD, Compression x MNPT
$16.86
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 86760949
Brand: Ham-Let
Model #: 3102172
Product Specifications
| Fitting Type | Connector |
| Material | Brass |
| End Connections | Compression x MNPT |
| Thread Standard | MPT |
| Tube Outside Diameter | 3/8 |
| Maximum Working Pressure (PSI - 3 Decimals) | 3900 |
| Overall Length (Decimal Inch) | 1.5700 |
| Overall Length (mm) | 39.87 |
| Standards | ASTM B68; ASTM B75 |
| Swagelok Part Number | B-600-1-6 |
| Minimum Temperature (C - 2 Decimals) | -20 |
| Maximum Temperature (C) | 37 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Israel |
