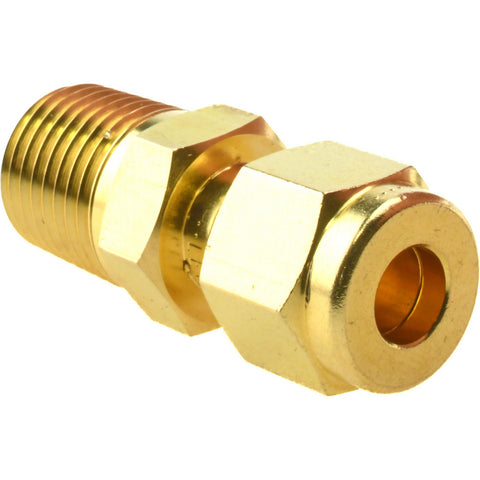

Compression Tube Connector: 1/4" Tube OD, Compression x MNPT
$11.59
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 86760881
Brand: Ham-Let
Model #: 3102161
Product Specifications
| Fitting Type | Connector |
| Material | Brass |
| End Connections | Compression x MNPT |
| Thread Standard | MPT |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 4000 |
| Overall Length (Decimal Inch) | 1.4900 |
| Overall Length (mm) | 37.85 |
| Standards | ASTM B68; ASTM B75 |
| Swagelok Part Number | B-400-1-4 |
| Minimum Temperature (C - 2 Decimals) | -20 |
| Maximum Temperature (C) | 37 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Israel |
