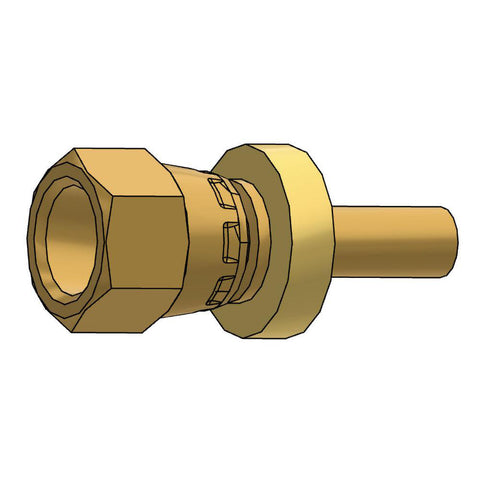

Hydraulic Hose Female JIC 37 ° Swivel Fitting: 0.25" ID, 4 mm, 7/ 6-20, 6,000 psi
$9.55
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 80051899
Brand: Parker
Model #: 30682-4-4B
Product Specifications
| Fitting Type | Female JIC 37 deg Swivel Fitting |
| Hose Inside Diameter (mm) | 6.40 |
| Hose Inside Diameter (Decimal Inch) | 0.2500 |
| Pressure Rating | 6000 |
| Hose Size | 4 |
| Material | Brass |
| Thread Size (Inch) | 7/16-20 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 39.0000 |
| Overall Length (mm) | 39.00 |
| For Use With | 801Plus, 801RH, 804, 821FR, 830M, 836, 837BM, 837PU, 838M, 846 Hoses |
| Standards | ISO 12151-5-SWS |
| Series | 82 |
| Shaft Type | Female JIC |
| Hex Size (Inch - 0 Decimals) | 9/16 |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
