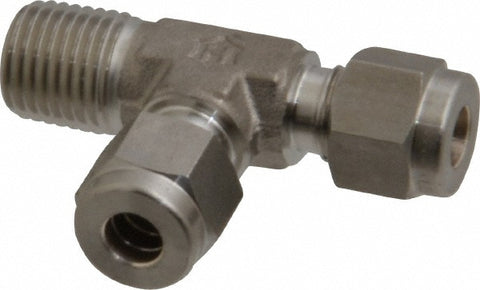

Compression Tube Male Run Tee: 1/4" Tube OD, Compression x MNPT x Compression
$65.80
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87955548
Brand: Ham-Let
Model #: 3002303
Product Specifications
| Fitting Type | Male Run Tee |
| Material | Stainless Steel |
| End Connections | Compression x MNPT x Compression |
| Thread Standard | MPT |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 8000 |
| Overall Length (Decimal Inch) | 1.9800 |
| Overall Length (mm) | 50.29 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-400-3-4TMT |
| Minimum Temperature (C - 2 Decimals) | -29 |
| Maximum Temperature (C) | 37 |
| Minimum Temperature (Deg F - 3 Decimals) | -20 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Israel |
