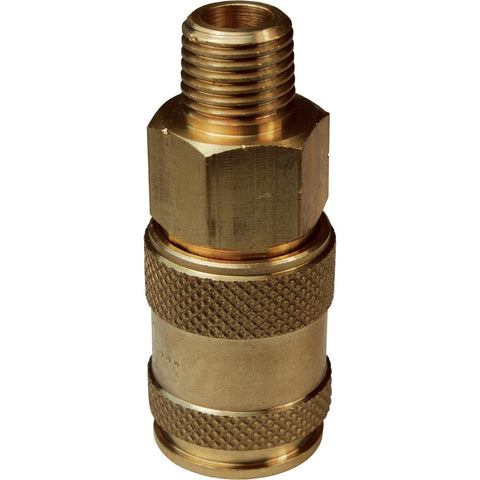

Pneumatic Hose Fittings & Couplings: Fitting Type: Air Hose; Type: Coupler; Coupling Type: Coupler; Interchange Type: Universal
$26.85
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 46712386
Brand: Dixon Valve & Coupling
Model #: 2UM3-B
Product Specifications
| Fitting Type | Air Hose |
| Type | Coupler |
| Coupling Type | Coupler |
| Interchange Type | Universal |
| Thread Type | NPTF |
| Coupler Size | 0.25 |
| Material | Brass |
| Thread Standard | Male NPT |
| Thread Size | 3/8 |
| Connection Type | Threaded |
| Body Diameter (Inch) | 1/4 |
| Hose Inside Diameter (mm) | 0 |
| Maximum Working Pressure (PSI - 3 Decimals) | 300.000 |
| Maximum Working Pressure (bar) | 0 |
| Hose Inside Diameter (Inch) | 3/8 |
| Shape | Straight |
| Overall Length (Decimal Inch) | 2.4400 |
| Epa Watersense Certified | No |
| Series | U |
| Maximum Termperature (F) | 250 |
| Maximum Temperature (C) | 121.00 |
| Minimum Temperature (C - 2 Decimals) | -40.00 |
| Minimum Temperature (Deg F - 3 Decimals) | -40.000 |
| Overall Length (Inch) | 1 |
| UNSPSC Code | 40141734 |
| Country of Origin | Taiwan |
