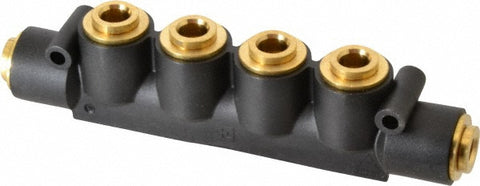

Manifold: 3/8" Inlet, 3/8" Outlet, 2 Inlet Ports, 4 Outlet Ports, 6.49" OAL, 1.02" OAW
$146.32
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 04093993
Brand: Parker
Model #: 24M-6-6
Product Specifications
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Number of Inlet Ports | 2 |
| Number Of Outlet Ports | 4 |
| Outlet Center to Center Distance | 1.1000 |
| Overall Length (Decimal Inch) | 6.4900 |
| Body Material | Glass Filled Nylon |
| Maximum Working Pressure (PSI - 3 Decimals) | 150.00 |
| Standards | SAE J1131; D.O.T. FMVSS571.106; SAE J2494-3 |
| Number of Ports | 6 |
| Thread Type | NPTF |
| Material | Brass |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Width (Decimal Inch - 4 Decimals) | 1.0200 |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2200 |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
