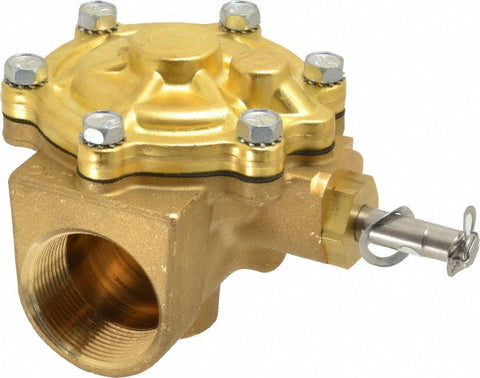

Solenoid Valve: 2-Way, 1-1/2" Port, NPT
$1,008.89
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68014281
Brand: Parker
Model #: 24F24C2180AAF
Product Specifications
| Valve Type | Two-Way; Piloted; Diaphragm |
| Port Size | 1-1/2 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Cv Factor Nc | 22.5000 |
| Overall Length (Decimal Inch) | 2.7600 |
| Orifice Size (Decimal Inch) | 1.2500 |
| Orifice Size | 1-1/4 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Gases; Light Oils; Fluids |
| Wattage | 6 |
| ASCO Number | 8210G22 |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Type Of Power | AC |
| Maximum Temperature (C) | 180 |
| UNSPSC Code | 40141605 |
