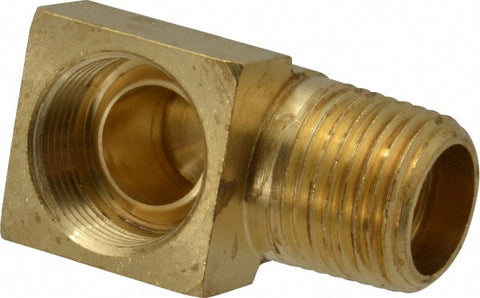

Brass Flared Tube 90 Deg Inverted Male Elbow: 5/8" OD, 1/2-14 Thread
$21.99
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62252853
Brand: Parker
Model #: 249IFHD-10-8
Product Specifications
| Fitting Type | 90 Deg Inverted Male Elbow |
| Material | Brass |
| Thread Size | 1/2-14 |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE J51; UL Listed; SAE 040202 |
| For Use With | Flammable Liquids and Gases; Fuel Lines; Hydraulic Brake; Power Steering; Transmission Cooler Lines |
| Special Item Information | Heavy Duty |
| Outside Diameter (Inch) | 5/8 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 1.8200 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
