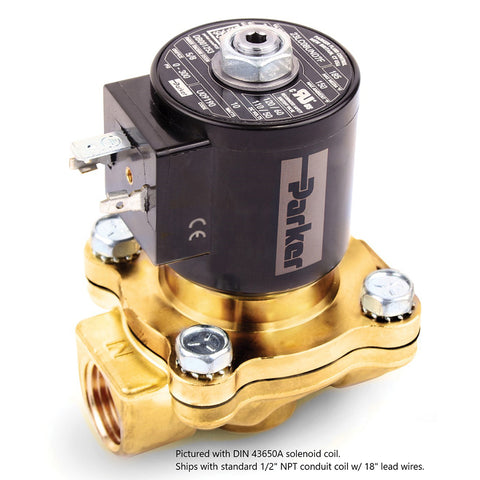

Solenoid Valve: 3/4" Port, NPT
$220.08
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 14886998
Brand: Parker
Model #: 23LC12VN7C7F
Product Specifications
| Valve Type | Solenoid |
| Port Size | 3/4 in |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 120V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 300 |
| Cv Factor Nc | 5.0000 |
| Orifice Size | 3/4 |
| Coil Type | H |
| Standards | UL; CSA Listed Safety Shutoff |
| Cv Rating | 5.000 |
| Coil Included | Yes |
| Lead Free | Yes |
| Wattage | 10 |
| Coil Lead Size | 1/2 NPT Conduit - 18 in Leads |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Type Of Power | AC |
| Type | IP 69; Wet Location |
| Maximum Temperature (C) | 180 |
| UNSPSC Code | 40141605 |
