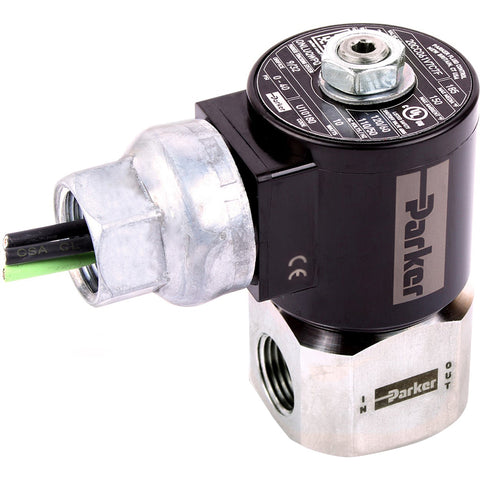

Solenoid Valve: 2-Way & 2-Position, 1/4" Port
$150.79
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 14357685
Brand: Parker
Model #: 20CC04TV7C7B
Product Specifications
| Valve Type | Two-Way; Two-Position |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Stainless Steel |
| Seal Material | FKM Fluorocarbon |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 40 |
| Orifice Size | 7/32 |
| Coil Type | H |
| Cv Rating | 0.790 |
| Wattage | 10 |
| Coil Lead Size | 1/2 NPT Conduit - 18 in Leads |
| Minimum Operating Pressure Differential | 0 |
| Type Of Power | DC |
| Type | IP 69; Wet Location |
| UNSPSC Code | 40141605 |
