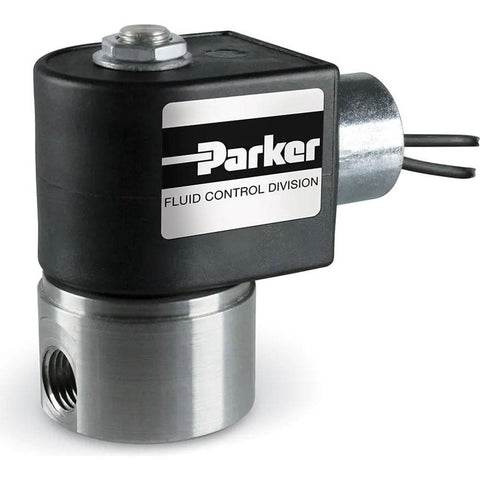

Solenoid Valve: 1/8" Port, NPT
$155.06
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20101200
Brand: Parker
Model #: 20CC02LV4C4B
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Stainless Steel |
| Seal Material | FKM Fluorocarbon |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 320 |
| Cv Factor Nc | 0.2200 |
| Orifice Size | 3/32 |
| Standards | NEMA 4X; cULus Listed |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil - Miniature Direct Acting Valve |
| Maximum Temperature (F) ( - 0 Decimals) | 240 |
| Minimum Temperature (Deg F - 3 Decimals) | -20 |
| Maximum Temperature (C) | 240 |
| UNSPSC Code | 40141605 |
