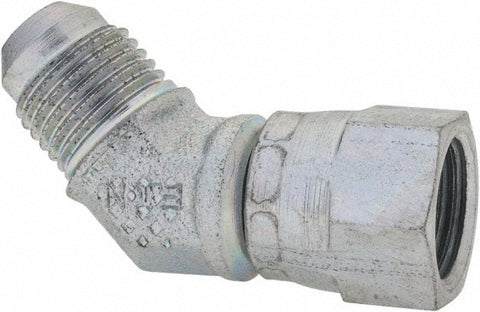

Steel Flared Tube 45 Deg Swivel Nut Elbow: 3/8" OD, 9/16-18 Thread, 37 deg Flared Angle
No reviews
Title
$9.55
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06682181
Brand: Eaton
Model #: 2070-6-6S
Product Specifications
| Fitting Type | 45 Deg Swivel Nut Elbow |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 9/16-18 |
| Thread Standard | SAE |
| End Connection | Flare x Swivel |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 400 |
| Standards | SAE 070321 |
| Outside Diameter (Inch) | 3/8 |
| Inside Diameter (Decimal Inch) | 0.4000 |
| Overall Length (Decimal Inch) | 1.5700 |
| UNSPSC Code | 27121707 |
