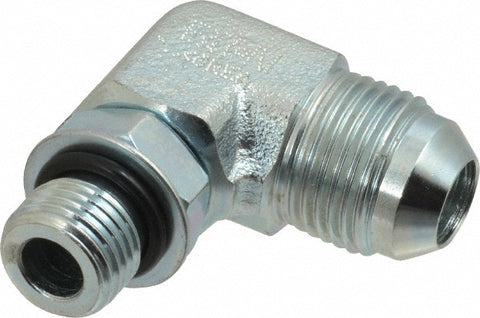

Steel Flared Tube 90 Deg Straight Thread Elbow: 1/2" OD, 37 deg Flared Angle
$13.28
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06682496
Brand: Eaton
Model #: 2062-6-8S
Product Specifications
| Fitting Type | 90 Deg Straight Thread Elbow |
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | ORB |
| End Connection | Flared to Male SAE O-Ring |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 400 |
| Standards | SAE 070220 |
| Outside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.3000 |
| Overall Length (Decimal Inch) | 1.6550 |
| UNSPSC Code | 27121707 |
