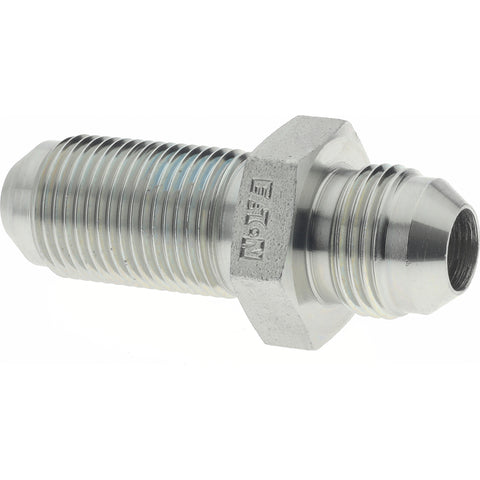

Steel Flared Tube Bulkhead Union: 1/2" OD, 3/4-16 Thread, 37 deg Flared Angle
$21.17
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06681837
Brand: Eaton
Model #: 2041-1-8-8S
Product Specifications
| Fitting Type | Bulkhead Union |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 3/4-16 |
| Thread Standard | SAE |
| End Connection | Flare x Flare |
| Minimum Working Temperature (Deg F) | -40 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE 070601 |
| Outside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.3900 |
| Overall Length (Decimal Inch) | 1.4700 |
| Overall Length (mm) | 37.30 |
| UNSPSC Code | 27121707 |
