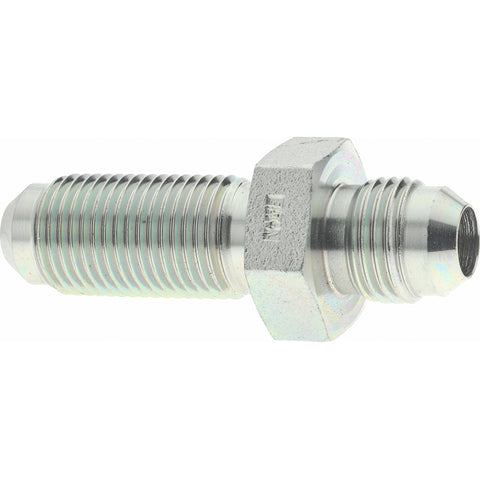

Steel Flared Tube Bulkhead Union: 3/8" OD, 9/16-18 Thread, 37 deg Flared Angle
$10.21
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06681829
Brand: Eaton
Model #: 2041-1-6-6S
Product Specifications
| Fitting Type | Bulkhead Union |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 9/16-18 |
| Thread Standard | SAE |
| End Connection | Flare x Flare |
| Minimum Working Temperature (Deg F) | -40 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE 070601 |
| Outside Diameter (Inch) | 3/8 |
| Inside Diameter (Decimal Inch) | 0.3000 |
| Overall Length (Decimal Inch) | 1.3100 |
| Overall Length (mm) | 33.30 |
| UNSPSC Code | 27121707 |
