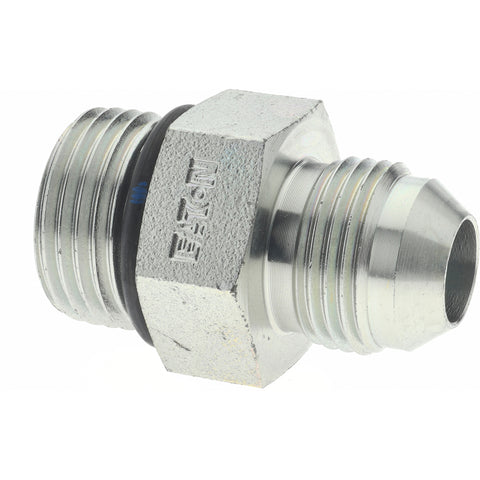

Steel Flared Tube 1/2" OD, 37 deg Flared Angle
$6.45
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06682025
Brand: Eaton
Model #: 202702-10-8S
Product Specifications
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | ORB |
| End Connection | Flared to Male SAE O-Ring |
| Minimum Working Temperature (Deg F) | -40 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE 070120 |
| Outside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.4800 |
| Overall Length (Decimal Inch) | 1.6000 |
| Overall Length (mm) | 40.60 |
| UNSPSC Code | 27121707 |
