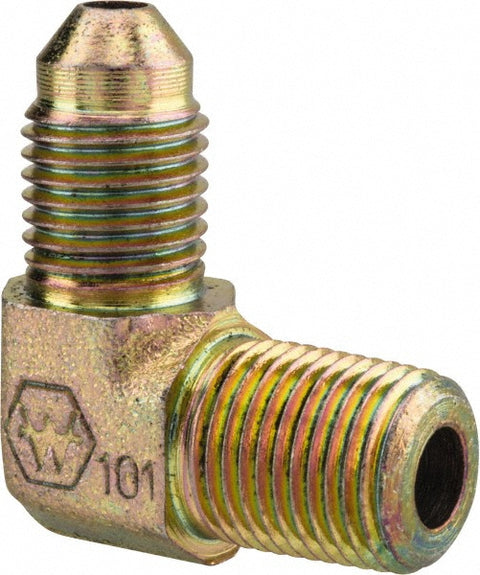

Steel Flared Tube 90 Deg Male Elbow: 3/16" OD, 37 deg Flared Angle
$13.91
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06682256
Brand: Eaton
Model #: 2024-2-3S
Product Specifications
| Fitting Type | 90 Deg Male Elbow |
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | NPT |
| End Connection | Flare x MNPT |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 400 |
| Standards | SAE 070202 |
| Outside Diameter (Inch) | 3/16 |
| Inside Diameter (Decimal Inch) | 0.1280 |
| Overall Length (Decimal Inch) | 0.9550 |
| UNSPSC Code | 27121707 |
