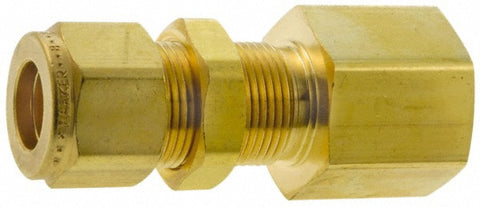

Compression Tube Bulkhead Female Connector: 1/8" Tube OD, Compression x FNPT
$45.04
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 71777338
Brand: Parker
Model #: 2-2 GH2BZ-B
Product Specifications
| Fitting Type | Bulkhead Female Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Standard | FPT |
| Tube Outside Diameter | 1/8 |
| Maximum Working Pressure (PSI - 3 Decimals) | 3600 |
| Overall Length (Decimal Inch) | 1.7600 |
| Standards | ASME-SB75; ASTM-B75 |
| Swagelok Part Number | B-200-71-2 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
