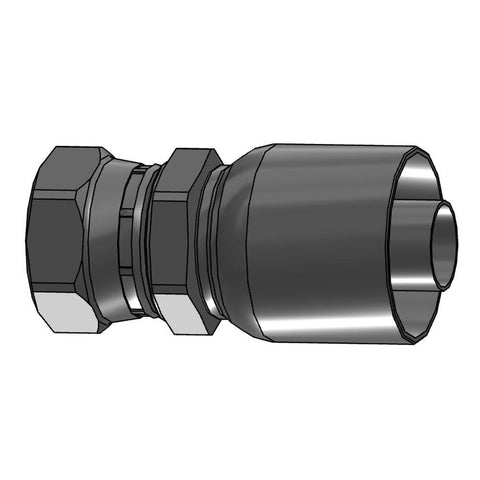

Hydraulic Hose Female BSP Parallel Pipe Swivel 60 ° Cone Fitting: 1" ID, 16 mm, 1-11, 3,000 psi
$168.15
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 39175526
Brand: Parker
Model #: 1GU43-16-16
Product Specifications
| Fitting Type | Female BSP Parallel Pipe Swivel 60 deg Cone Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.0000 |
| Pressure Rating | 3000 |
| Hose Size | 16 |
| Material | Steel |
| Thread Type | BSPP |
| Thread Size (Inch) | 1-11 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 3000.00 |
| Maximum Working Pressure (bar) | 3000.00 |
| Overall Length (Decimal Inch) | 3.7400 |
| Overall Length (mm) | 95.00 |
| For Use With | 187; ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487; ST, 302, 304, 387; ST, 722; ST, 881 Hoses; ST, 787; ST, 797; TC |
| Standards | California PROP 65 |
| Series | 43 |
| Shaft Type | BSPP |
| UNSPSC Code | 40141734 |
| Country of Origin | South Korea |
