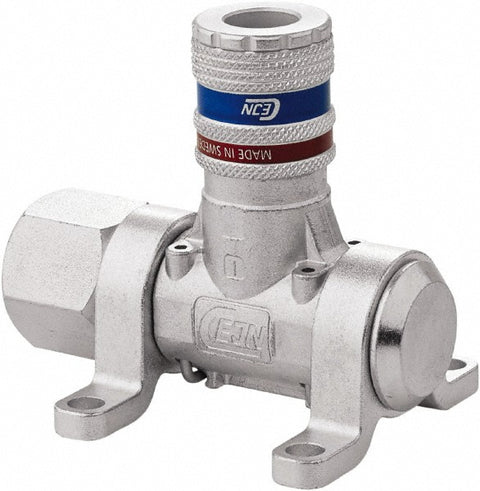

Manifold: 1/2" Inlet, 1/4" Outlet, 1 Inlet Port, 1 Outlet Port, 3" OAL, 2.28" OAW, 2.7" OAH
$79.38
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 31058001
Brand: CEJN
Model #: 19-902-9151-NPT
Product Specifications
| Inlet Size | 1/2 in |
| Outlet Size | 1/4 in |
| Number of Inlet Ports | 1 |
| Number Of Outlet Ports | 1 |
| Outlet Center to Center Distance | 2.2200 |
| Overall Length (Decimal Inch) | 3.0000 |
| Maximum Working Pressure (PSI - 3 Decimals) | 230.00 |
| Thread Type | NPT |
| Material | Steel; Zinc |
| Interchange Coupler Type | Asian |
| Minimum Temperature (Deg F - 3 Decimals) | -4 |
| Width (Decimal Inch - 4 Decimals) | 2.2800 |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2450 |
| Height (Decimal Inch) | 2.7000 |
| Maximum Temperature (F) ( - 0 Decimals) | 212 |
| UNSPSC Code | 40141734 |
| Country of Origin | Sweden |
