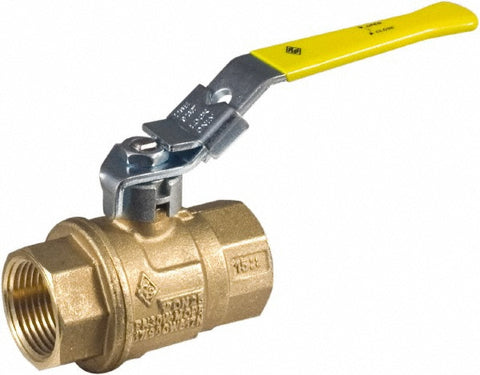

Full Port Bi-Directional Manual Ball Valve: 3" Pipe, Full Port
$421.14
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 38152872
Brand: BONOMI
Model #: 171L-3
Product Specifications
| Valve Type | Ball; Full-Port; Bi-Directional |
| Pipe Size | 3 |
| Body Material | Brass |
| End Connection | NPT |
| Port Type | Full |
| Handle Type | Locking Lever |
| Maximum Working Pressure (PSI - 3 Decimals) | 600 |
| Steam Pressure Rating (psi) | 150 |
| Temperature Range | -4°F to 366°F |
| Trim Material | Brass |
| Seal Material | Polytetrafluroethylene |
| Standards | FM; UL; CSAus |
| Maximum Working Temperature (F) | 366 |
| Minimum Working Temperature (Deg F) | -4 |
| Lead Free | Yes |
| Seat Material | Polytetrafluroethylene |
| UNSPSC Code | 40141607 |
| Country of Origin | Italy |
