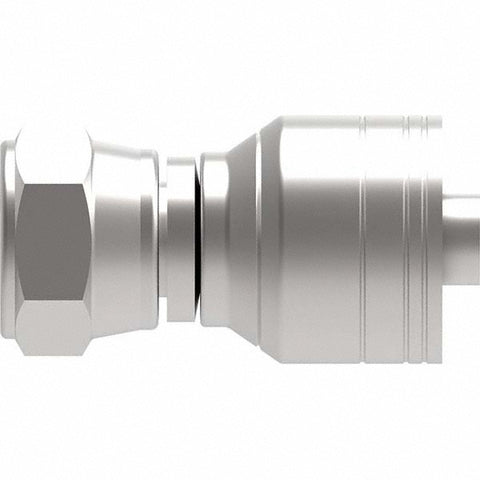

Hydraulic Hose BSPP 60 Cone Female Swivel Straight Fitting: 1" ID, 1" OD, 16 mm, G 1-11
$127.53
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 19152990
Brand: Eaton
Model #: 16Z-366-BG
Product Specifications
| Fitting Type | BSPP 60 Cone Female Swivel Straight Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.0000 |
| Hose Size | 16 |
| Material | Steel |
| Thread Type | BSPP |
| Thread Size (Inch) | G 1-11 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 2.4400 |
| Overall Length (mm) | 2.44 |
| For Use With | H9622 (-12, -16, -20); H280; H190H; H116 (-04, -06, -08); H245; H275 (-04 thru -16); H421; H145; H104; H345; H400; H425; H1776 (-04 thru -20); H245L; H6002 (-08, -12, -16); EC118; H0106 (-04 thru -10); EC215; H1777 (-04, -06, 08); EC210; EC110; H1981 (-04, -06, -08); EC115; H115 (-04 thru -20); H1982 (-06 thru -16); H290; H6008 (-16 & -20); H190; H145R; H290L; H350; H290H; H0105 (-06 thru -12, -20); H265 (-04, -06, -08, -12, -16); H1571 (-12 only); H1812 (-04 thru -20); H9949; H6009 (-20 only) |
| Standards | SAE J1176 |
| Series | Z |
| Shaft Type | BSPP |
| Hex Size (Inch - 0 Decimals) | 1-39/64 |
| Hose Outside Diameter (Decimal Inch) | 1.0000 |
| UNSPSC Code | 40141734 |
