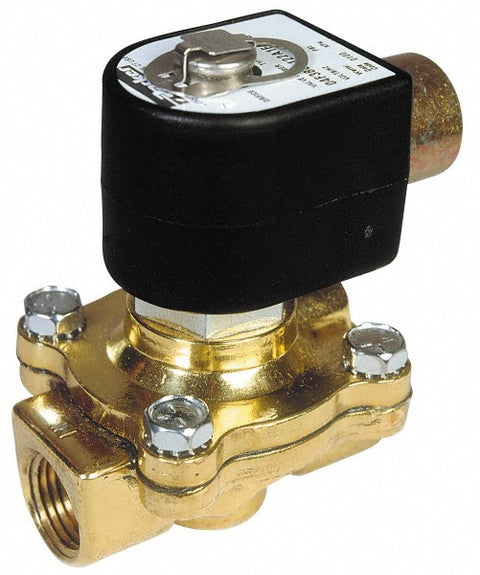

Solenoid Valve: 2-Way, 1" Port, NPT
$519.76
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68014547
Brand: Parker
Model #: 16F24O2164A3F
Product Specifications
| Valve Type | Two-Way; Piloted; Diaphragm |
| Port Size | 1 in |
| Valve Unactuated State | Normally Open |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 125 |
| Cv Factor Nc | 13.0000 |
| Overall Height (Decimal Inch) | 5.4325 |
| Overall Length (Decimal Inch) | 2.0400 |
| Orifice Size (Decimal Inch) | 1.0000 |
| Orifice Size | 1 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 13.000 |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Two-Way Piloted Diaphragm |
| Wattage | 11.5 |
| ASCO Number | 8210G4 |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Type Of Power | DC |
| Maximum Temperature (C) | 180 |
| UNSPSC Code | 40141605 |
