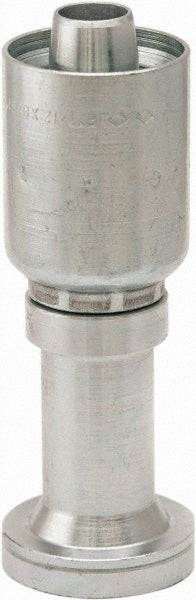

Hydraulic Hose Straight SAE Code 62 Flange Head Fitting: 1.25" ID, 20 mm, 1-1/2", 6,000 psi
$205.14
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 92694884
Brand: Parker
Model #: 16A77-24-20
Product Specifications
| Fitting Type | Straight SAE Code 62 Flange Head Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.2500 |
| Pressure Rating | 6000 |
| Hose Size | 20 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 1-1/2 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 4.6500 |
| Overall Length (mm) | 4.65 |
| For Use With | 387; ST, 787; ST, 797; ST, 487; ST Hoses; TC |
| Standards | ISO 12151-3-S-S; California PROP 65 |
| Series | 77 |
| Shaft Type | SAE |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
