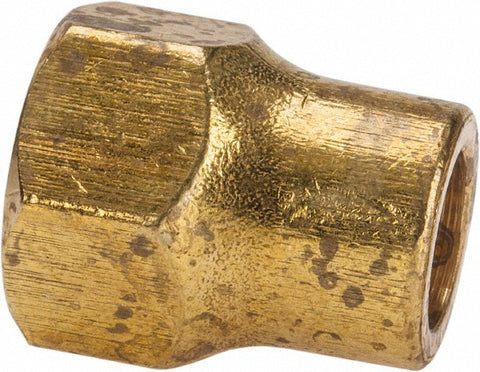

Brass Flared Tube Nut: 1/2" OD, 3/4-16 Thread, 45 deg Flared Angle
$11.08
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62249636
Brand: Parker
Model #: 14FL-8
Product Specifications
| Fitting Type | Nut |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 3/4-16 |
| Thread Standard | UNF |
| End Connection | Flare |
| Maximum Working Temperature (F) | 250 |
| Standards | UL Listing; SAE J513; SAE J512 |
| Special Item Information | Forged |
| Outside Diameter (Inch) | 1/2 |
| Maximum Working Temprature (Deg C) | 121 |
| Overall Length (Decimal Inch) | 1.1900 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
