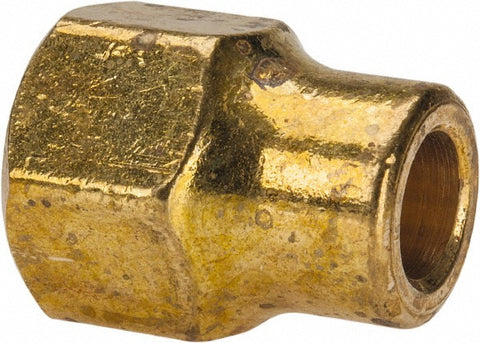

Brass Flared Tube Nut: 3/8" OD, 5/8-18 Thread, 45 deg Flared Angle
$25.03
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62249628
Brand: Parker
Model #: 14FL-6
Product Specifications
| Fitting Type | Nut |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 5/8-18 |
| Thread Standard | UNF |
| End Connection | Flare |
| Maximum Working Temperature (F) | 250 |
| Standards | UL Listing; SAE J513; SAE J512 |
| Special Item Information | Forged |
| Outside Diameter (Inch) | 3/8 |
| Maximum Working Temprature (Deg C) | 121 |
| Overall Length (Decimal Inch) | 1.0600 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
