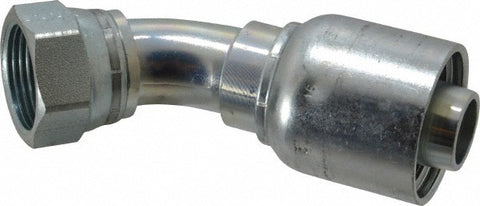

Hydraulic Hose Short Drop Female JIC Swivel 45 ° Elbow: 1" ID, 16 mm, 1-5/16-12, 4,000 psi
$144.43
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 49726326
Brand: Parker
Model #: 13743-16-16
Product Specifications
| Fitting Type | Short Drop Female JIC Swivel 45 deg Elbow |
| Hose Inside Diameter (Decimal Inch) | 1.0000 |
| Pressure Rating | 4000 |
| Hose Size | 16 |
| Material | Steel |
| Thread Size (Inch) | 1-5/16-12 |
| Shape | 45 Deg Elbow |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 4000.00 |
| Maximum Working Pressure (bar) | 4000.00 |
| For Use With | 187; ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487; ST, 302, 304, 387; ST, 722; ST, 881 Hoses; ST, 787; ST, 797; TC |
| Standards | ISO 12151-5; California PROP 65 |
| Series | 43 |
| Shaft Type | Female JIC |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
