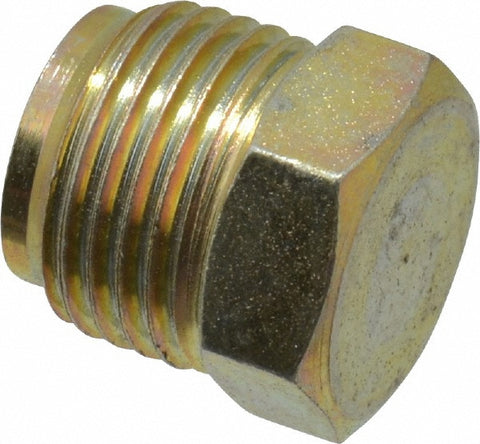

Steel Flared Tube Inverted Plug: 3/8" OD, 5/8-18 Thread, 45 deg Flared Angle
$6.83
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06681613
Brand: Eaton
Model #: 131X6
Product Specifications
| Fitting Type | Inverted Plug |
| Flared Angle | 45 |
| Material | Steel |
| Thread Size | 5/8-18 |
| Thread Standard | UNF |
| End Connection | Flare |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE 040109; ASME; MS; ASA |
| Outside Diameter (Inch) | 3/8 |
| Inside Diameter (Decimal Inch) | 0.3750 |
| Maximum Working Temprature (Deg C) | 121 |
| Overall Length (Decimal Inch) | 0.6600 |
| UNSPSC Code | 27121707 |
