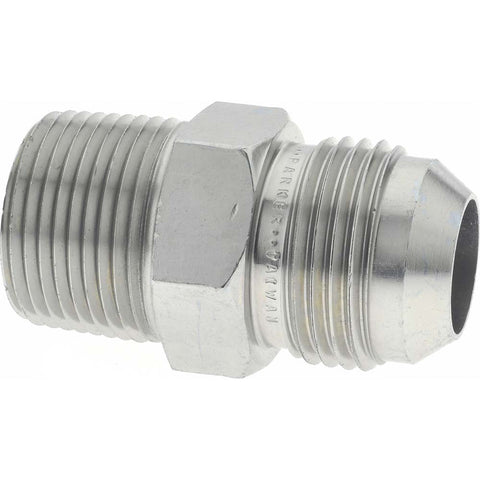

Steel Flared Tube Connector: 3/4" OD, 37 deg Flared Angle
$10.22
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 09105487
Brand: Parker
Model #: 12 FTX-S
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE 070102; SAE J514 |
| Max Working Pressure Dynamic | 5000 |
| Outside Diameter (Inch) | 3/4 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 2.0600 |
| UNSPSC Code | 27121707 |
| Country of Origin | Taiwan |
