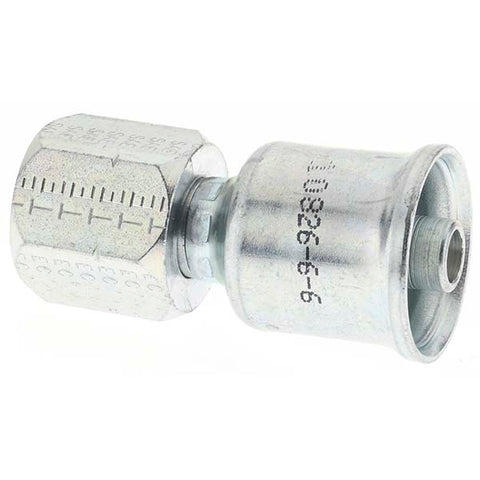

Hydraulic Hose Straight Female SAE 45 ° JIC Swivel Fitting: 0.3125" ID, 5 mm, 5/8-18
$35.12
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66434135
Brand: Parker
Model #: 10826-6-6
Product Specifications
| Fitting Type | Straight Female SAE 45 deg JIC Swivel Fitting |
| Hose Inside Diameter (mm) | 0.31 |
| Hose Inside Diameter (Decimal Inch) | 0.3125 |
| Hose Size | 5 |
| Material | Brass |
| Thread Type | NPT |
| Thread Size (Inch) | 5/8-18 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 1.8400 |
| Overall Length (mm) | 47.00 |
| For Use With | 201, 206, 213, 221FR, 225, 244, 266, 285, 293, SS23CG Hoses |
| Series | 26 |
| Shaft Type | NPT |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
