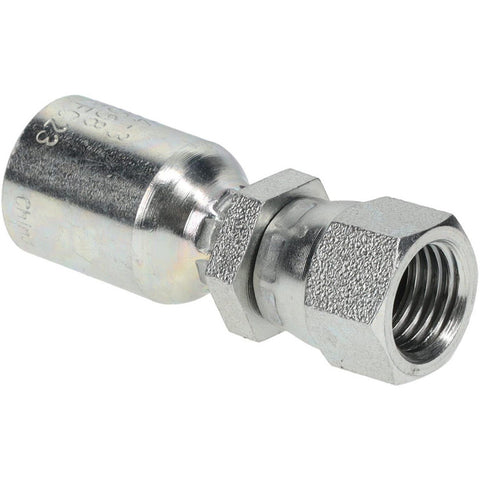

Hydraulic Hose Female JIC 37 & 45 ° Dual Flare Swivel Straight Fitting: 0.1875" ID, 4 mm, 7/16-20, 6,000 psi
$18.01
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 44035210
Brand: Parker
Model #: 10656-4-3
Product Specifications
| Fitting Type | Female JIC 37 deg, 45 deg Dual Flare Swivel Straight Fitting |
| Hose Inside Diameter (mm) | 0.18 |
| Hose Inside Diameter (Decimal Inch) | 0.1875 |
| Pressure Rating | 6000 |
| Hose Size | 4 |
| Material | Steel |
| Thread Type | JIC |
| Thread Size (Inch) | 7/16-20 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 1.7800 |
| For Use With | 510C, 518C, 540N, 548N, 560, 590, D6R Hose |
| Standards | California PROP 65 |
| Series | 56 |
| Shaft Type | JIC |
| Body Diameter (Inch) | 1 |
| Hex Size (Inch - 0 Decimals) | 9/16 |
| UNSPSC Code | 40141734 |
| Country of Origin | China |
