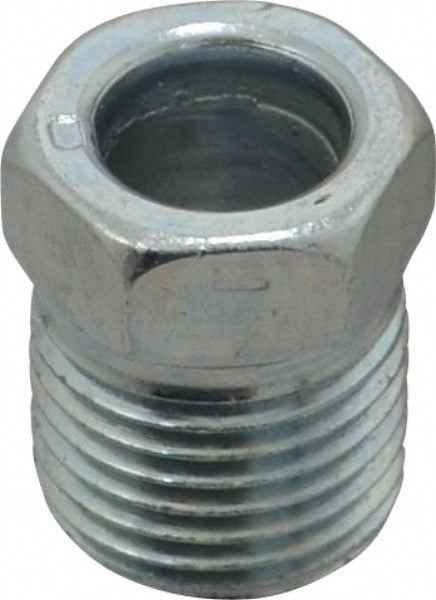

Steel Flared Tube Inverted Nut: 1/4" OD, 7/16-24 Thread, 45 deg Flared Angle
$0.70
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06681472
Brand: Eaton
Model #: 105X4
Product Specifications
| Fitting Type | Inverted Nut |
| Flared Angle | 45 |
| Material | Steel |
| Thread Size | 7/16-24 |
| End Connection | Flare |
| Maximum Working Temperature (F) | 250 |
| Standards | ASME; MS; SAE 040110; ASA |
| Outside Diameter (Inch) | 1/4 |
| Maximum Working Temprature (Deg C) | 121 |
| Overall Length (Decimal Inch) | 0.5600 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
