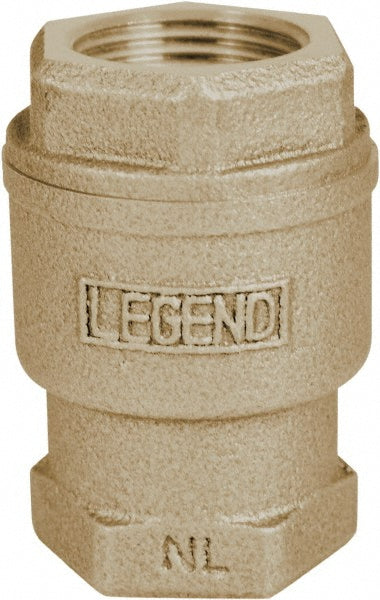

Check Valve: 1-1/4" Pipe
$65.28
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66402694
Brand: Legend Valve
Model #: 105-446NL
Product Specifications
| Valve Type | Inline |
| Connection Type | FNPT x FNPT |
| End Connection | FNPT x FNPT |
| Body Material | Lead-Free Bronze |
| Crack Pressure (psi) | 0.50 |
| Pipe Size | 1-1/4 in |
| Seal Material | Nitrile butadiene rubber |
| Color | Bronze |
| Maximum Working Pressure | 250 psi |
| Standards | MSS SP 80; NSF/ANSI 372 |
| Lead Free | Yes |
| Material Grade | UNS C89844 |
| Port Type | Full |
| Cv Rating | 21.000 |
| Width (Decimal Inch - 4 Decimals) | 2.1600 |
| Maximum Temperature (F) ( - 0 Decimals) | 180.00 |
| Spring Material | Phosphor-Bronze |
| Pipe Size | 1-1/4 |
| UNSPSC Code | 40141622 |
| Country of Origin | Taiwan |
