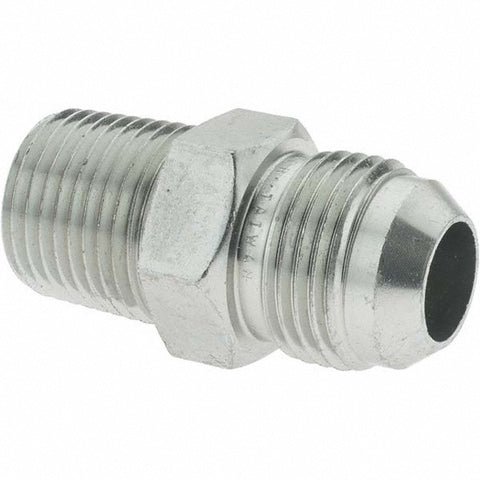

Steel Flared Tube 5/8" OD, 1/2-14 Thread, 37 deg Flared Angle
$8.18
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 90216292
Brand: Parker
Model #: 10 FTX-S
Product Specifications
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 1/2-14 |
| Thread Standard | Male NPT |
| End Connection | Flare x NPT |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE 070102; SAE J514 |
| Max Working Pressure Dynamic | 5000 |
| Outside Diameter (Inch) | 5/8 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.8900 |
| UNSPSC Code | 27121707 |
| Country of Origin | Taiwan |
