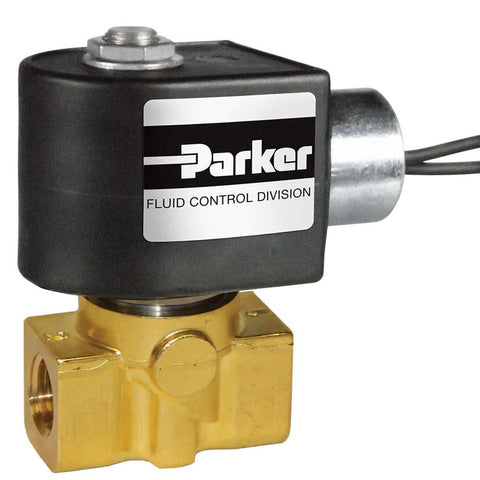

Solenoid Valve: 2-Way, 3/8" Port, NPT
$290.16
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20102711
Brand: Parker
Model #: 06F23C2140ACF4C05
Product Specifications
| Valve Type | Two-Way; Diaphragm; Internally-Piloted |
| Port Size | 3/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 120/60-110/50V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Cv Factor Nc | 3.0000 |
| Orifice Size | 5/8 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 3.000 |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Minimum Temperature (Deg F - 3 Decimals) | 0 |
| Maximum Temperature (C) | 180 |
| UNSPSC Code | 40141605 |
