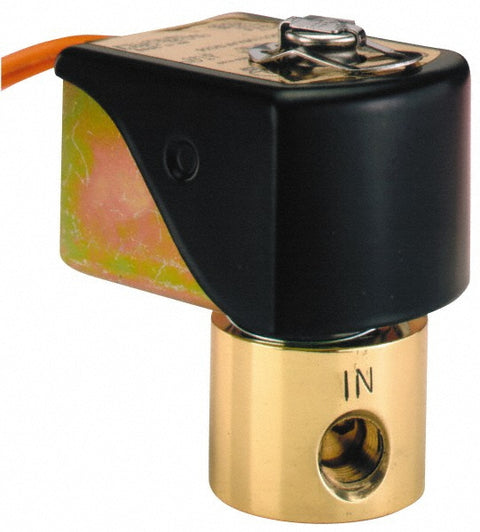

Solenoid Valve: 3/8" Port, NPT
$112.20
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68013994
Brand: Parker
Model #: 06F20C2118BDF
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 3/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 90 |
| Cv Factor Nc | 0.8500 |
| Overall Height (Decimal Inch) | 2.6563 |
| Orifice Size (Decimal Inch) | 0.2813 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Applications | Gases; Light Oils; Fluids |
| Wattage | 16 |
| ASCO Number | 8263G210 |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Type Of Power | AC |
| Maximum Temperature (C) | 200 |
| UNSPSC Code | 40141605 |
