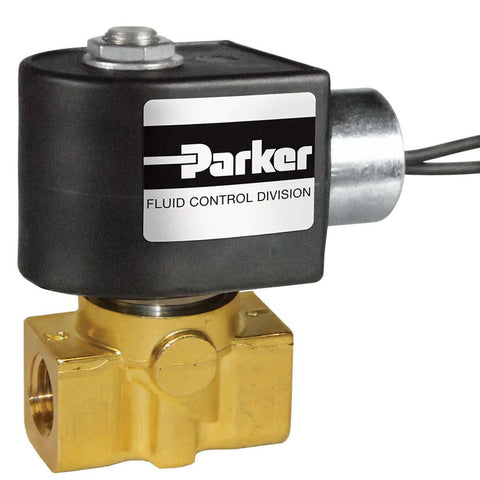

Solenoid Valve: 3/8" Port, NPT
$309.02
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20102604
Brand: Parker
Model #: 06F20C2114BDF4C05
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 3/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 120/60-110/50V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 100 |
| Cv Factor Nc | 0.7200 |
| Orifice Size | 7/32 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | 0 |
| Maximum Temperature (C) | 200 |
| UNSPSC Code | 40141605 |
