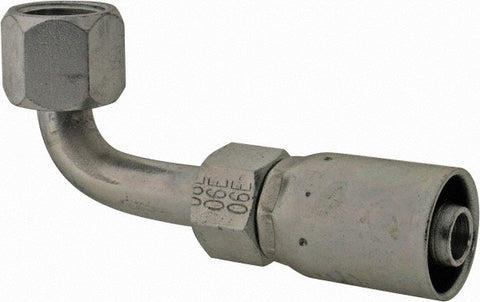

Hydraulic Hose Female JIC 37 ° Swivel Fitting: 0.375" ID, 0.375" OD, 6 mm, 9/16-18
$44.41
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06032353
Brand: Eaton
Model #: 06E-666
Product Specifications
| Fitting Type | Female JIC 37 deg Swivel Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.3750 |
| Hose Size | 6 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 9/16-18 |
| Shape | 45 Deg Elbow; Long Drop Elbow; 90 Deg Elbow |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000.00 |
| Maximum Working Pressure (bar) | 5000.00 |
| Overall Length (Decimal Inch) | 2.9700 |
| For Use With | H009; H209; H285; H243; H265; H275; H277; H436; H435 |
| Series | E |
| Shaft Type | SAE |
| Hex Size (Inch - 0 Decimals) | 5/8 |
| Hose Outside Diameter (Decimal Inch) | 0.3750 |
| UNSPSC Code | 40141734 |
