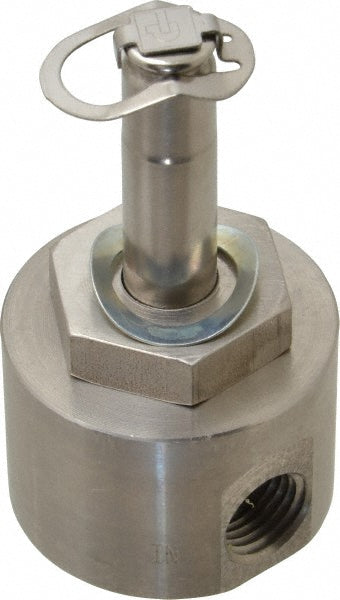

Solenoid Valve: 1/4" Port, NPT
$132.75
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68014026
Brand: Parker
Model #: 04F20C3103AAF
Product Specifications
| Valve Type | Solenoid |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Stainless Steel |
| Seal Material | NBR |
| Maximum Working Pressure (PSI - 3 Decimals) | 750 |
| Cv Factor Nc | 0.0600 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Special Item Information | Solenoid coils not included |
| Applications | Gases; Light Oils; Fluids |
| Wattage | 6 |
| ASCO Number | 8262G80 |
| Minimum Operating Pressure Differential | 0 |
| Type Of Power | AC |
| UNSPSC Code | 40141605 |
