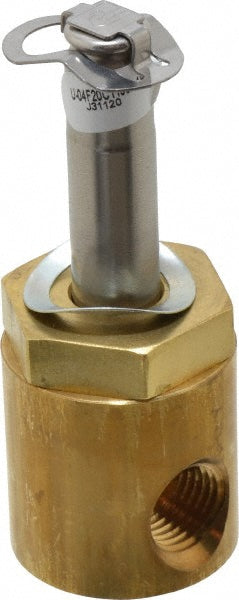

Solenoid Valve: 1/4" Port, NPT
$62.56
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68014091
Brand: Parker
Model #: 04F20C1106A1F
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Cv Factor Nc | 0.1700 |
| Overall Height (Decimal Inch) | 3.0156 |
| Orifice Size (Decimal Inch) | 0.0938 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Gases; Light Oils; Fluids |
| Wattage | 9.5 |
| ASCO Number | 8262G20 |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | DC |
| Maximum Temperature (C) | 120 |
| UNSPSC Code | 40141605 |
