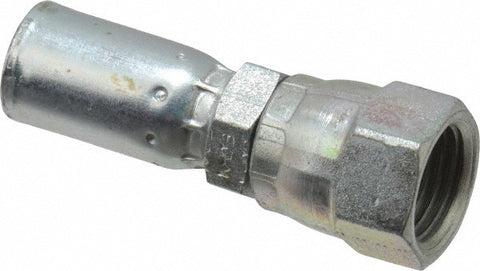

Hydraulic Hose Female Swivel Fitting: 0.25" ID, 0.375" OD, 4 mm, 9/16-18
$22.09
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06032247
Brand: Eaton
Model #: 04E-606
Product Specifications
| Fitting Type | Female Swivel Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.2500 |
| Hose Size | 4 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 9/16-18 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 4000.00 |
| Maximum Working Pressure (bar) | 4000.00 |
| For Use With | H009; H209; H285; H243; H265; H275; H277; H436; H435 |
| Series | E |
| Shaft Type | SAE |
| Hex Size (Inch - 0 Decimals) | 9/16 |
| Hose Outside Diameter (Decimal Inch) | 0.3750 |
| UNSPSC Code | 40141734 |
