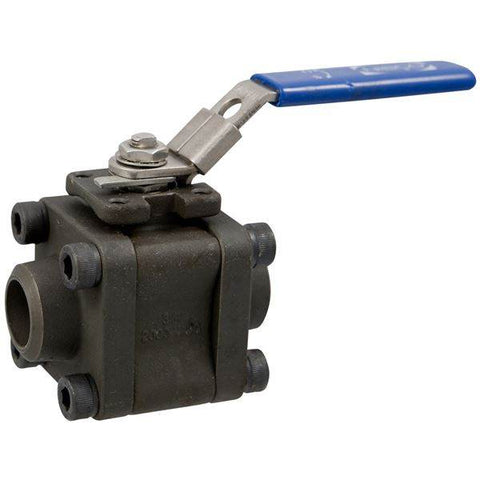

(Nibco Part#: NL9701C) BM-590-CS-R-66-FS-LL - Three-Piece Carbon Steel Ball Valve - Fire Safe, Butt Weld ISO Mount End
$369.22
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: NL9701C
Brand: Nibco
UPC Code #: 039923798077
Product Specifications
| Type | Ball Valve |
| Valve Size | 1 1/2 |
| Connection Type | B - Butt Weld |
| Seal Material | RPTFE (Reinforced) |
| Seat Material | RPTFE (Reinforced) |
| Stem Material | SS - Stainless Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 143 |
| Valve Operator | Locking Lever Handle with ISO Actuator Mounting Pad |
| Description | BM590CSR66FSLL 1 1/2 CS BW 3PC W/MT FS LL |
| eClass Classification | Actuation Ball Valves |
| Turns/Operation | Quarter-Turn |
| Weight | 7.300 lb |
