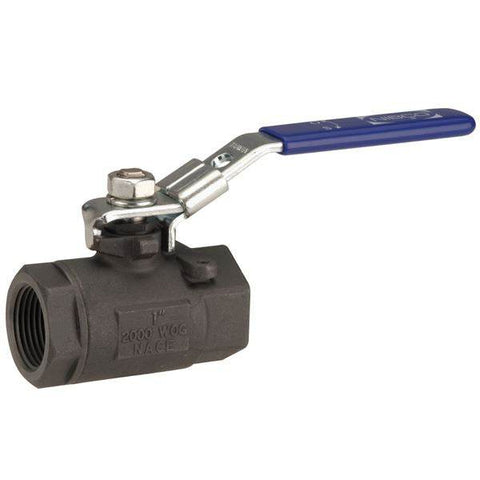

(Nibco Part#: NL94T5C) TC-580-CS-R-66-LL - Two-Piece Carbon Steel Ball Valve - Conventional Port, Stainless Steel Trim
$179.14
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: NL94T5C
Brand: Nibco
UPC Code #: 039923792976
Product Specifications
| Type | Ball Valve |
| Valve Size | 1 1/2 |
| Connection Type | T -- Female NPT Thread (FIPT) |
| Seal Material | RPTFE (Reinforced) |
| Seat Material | RPTFE (Reinforced) |
| Stem Material | SS - Stainless Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 64 |
| Valve Operator | CS Locking Lever Handle |
| Description | TC580CSR66LL 1 1/2THD RP BV 2PT MTG LL SS |
| Turns/Operation | Quarter-Turn |
| Weight | 3.750 lb |
