(Nibco Part#: H-91404WHV) 9140W Series - Full Port Forged Brass Uni-Flange Ball Valves - Flow Control Products

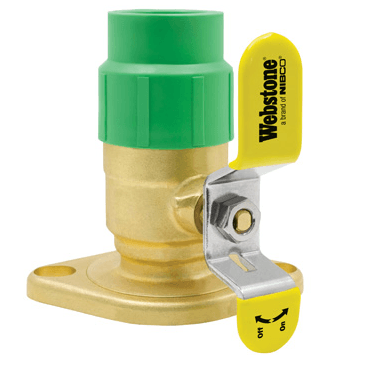

(Nibco Part#: H-91404WHV) 9140W Series - Full Port Forged Brass Uni-Flange Ball Valves

$69.25

Payment Forms We Accept: Visa, Mastercard, Discover, American Express


Material #: H-91404WHV
Brand: Nibco
UPC Code #:

Product Specifications

Industry Standards/Certifications NSF/ANSI 61, NSF/ANSI 372
Type Ball Valve
Valve Size 1
Connection Type Socket Female x Flange
Valve Operator Lever Handle
Weight 1.910 lb
Minimum Temperature 73 ºF
Maximum Temperature 180 ºF
Minimum Operating Pressure 100 psi
Maximum Operating Pressure 355 psi
Flanged Body Material Brass
End Material Brass with PP-R
Seat Material PTFE
Ball Material Brass HCP
Stem Material Brass
Stem Seal Material PTFE
Packing Gland Material Brass
Lever Handle Material Steel CP
Handle Nut Material Stainless Steel
Handle Jacket Material Vinyl
Rotating Flange Material Brass
Rotating Flange Ring Stainless Steel
Flange Bolt & Nuts Material Steel ZP
Inside Diameter (A) 1 in
Length (B) 4 1/8 in
Height (C) 2.625 in
Handle Length (D) 4 in
Flange Thickness (E) 7/16 in
Hole Length (F(HV)) 5/8 in
Hole Diameter (G) 1 1/2 in
Hole Pitch (H) 2 11/16 in
Flange Length (I) 4 1/8 in

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Durable and Efficient Valve for Heavy Duty Applications

The Nibco 9140W Series Full Port Forged Brass Uni-Flange Ball Valve is an excellent choice for industrial use, with high-quality materials and reliable performance. It offers sturdy construction and an easy-to-use lever handle, making it a dependable option for various systems requiring secure fluid control.
